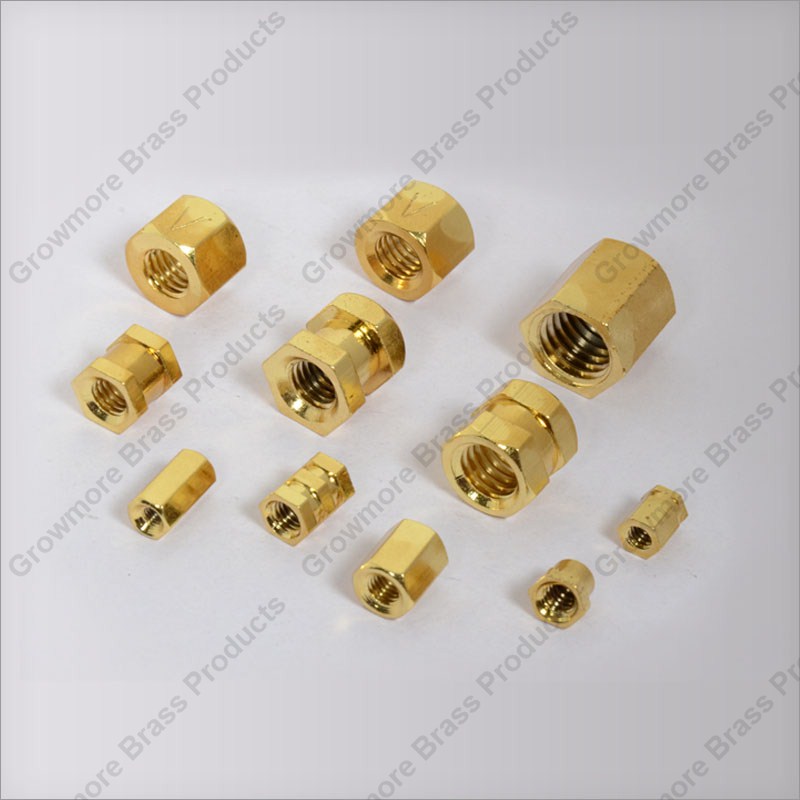

Brass Moulding Inserts


Inserts : Brass Threaded Inserts, Brass Knurled Inserts, Brass Inserts for Plastic, Brass Inserts for Wood & Clipboard, Ultrasonic Range of Brass Inserts, Heatbit Range of Brass Inserts, Press-in Inserts with & without collars, Moulded-in Inserts, Brass Hexagonal Inserts, Brass Square Inserts.

Features :

Threads as per International Go & Not Go Standards.
Deep Goove for maximum Pull Out Resistance.
Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts.
Both blind and through inserts are available with no minimum Qty.


Available :

Knurling
Diamond
Straight
Unidirectional


Typical Application :

Instrumentation, Telecommunications


Material : Free cutting brass is 319 type (i) or
Free cutting brass as per bs 249 type (i) or
High grade free cutting brass
Any special brass material composition as per customers requirement

Threads : ISO Metric (MM Threads)
BA Threads
BSW Threads (inches)
UNC & UNF Threads
Any threads as per custom design..

Length / Size : Begins from M2 or equivalent threads and up to any size as per Custom Designs.

Finish And Coating : Natural, Nickel Plated, Tin Plated or any coating as per customer specification.


Any kind of special inserts can be developed and supplied exactly as per customer specifications, design and requirement
